B2secure AI neural network

B2secure AI is an intelligent software function designed to automatically detect and alert on a wide range of dangerous and prohibited items in X-ray images. The system uses modern artificial intelligence algorithms to analyze data, which allows to significantly increase security at inspection sites, reducing the workload of the operator and minimizing the human factor.

The solution works automatically, highlighting the found items with a color mark with explanatory information and can be integrated into both new and already operated X-ray television installations of the B2scan line.

Submit your application Download the presentation

Technological features

Specifications

Multi-Parameter Analysis: Unlike simple template matching, the neural network performs a comprehensive analysis based on three key parameters:
- Atomic Number (Zeff): Determines the material’s chemical composition, enabling differentiation between organic materials and metals.
- Optical Density Coefficient (Gray): Analyzes the object’s density and internal structure.
- Shape Recognition: Identifies contours and geometry of objects, even if partially obscured or positioned at an angle.
Flexible Integration System: The feature can be installed on new X-ray systems, as well as retrofitted into existing models from the B2scan lineup, without the need to replace core hardware.
Adaptive Algorithms: The neural network’s ability to learn and improve detection accuracy over time.

Detectable item categories

Ammunition

cartridges, bullets, shells

Firearms and components

pistols, bolt frames, barrels, magazines

Explosives and devices

grenades, explosive packages, detonating caps

Cold and traumatic weapons

knives, daggers, batons, stun guns

Hazardous liquids and substances

acids, flammable liquids

Other threats

pyrotechnics (fireworks, firecrackers), lighters, pressurized cylinders, batteries, glass containers, tools (hammers, scissors), police equipment (handcuffs).

Notification functionality

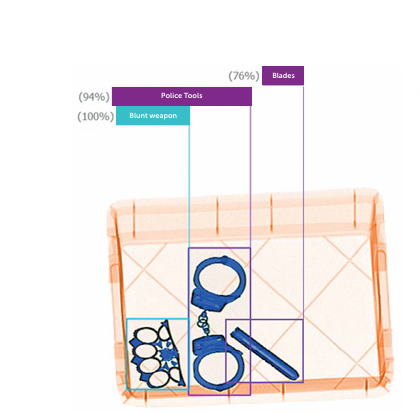

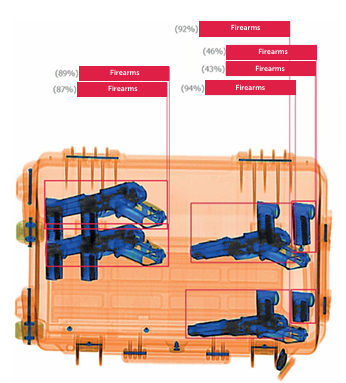

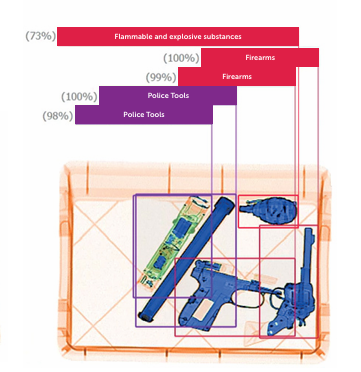

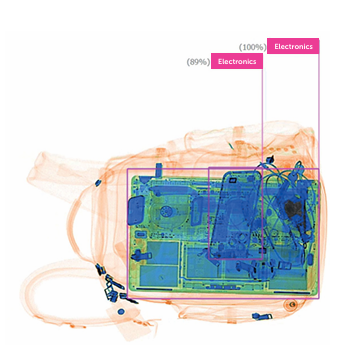

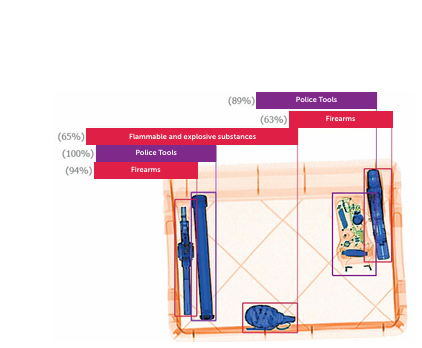

Visual marking

Automatic highlighting of the object with a colored frame

Detailed information

Displaying the object name and percentage match probability to the reference

Signaling

Possibility of setting up automatic stop of the conveyor belt, activation of sound and light warning

Flexible settings

Option to enable/disable detection for specific item categories

Interface customization

Wide range of label appearance settings (color, frame thickness, background, text)
