Stationary Under Vehicle Inspection System B2scan DD-S

The B2scan DD-S stationary vehicle underbody inspection system is designed to inspect the underside of a wide range of vehicles. It allows for quick and accurate detection of hidden and prohibited items that may be hidden under vehicles. The vehicle underbody inspection system significantly reduces the time required for inspection procedures, saves human resources, is built into the road surface and can be integrated into existing security systems.

Submit your application Download the presentation

Stationary vehicle underbody inspection system

Technological features
Specifications
Permitting documentation

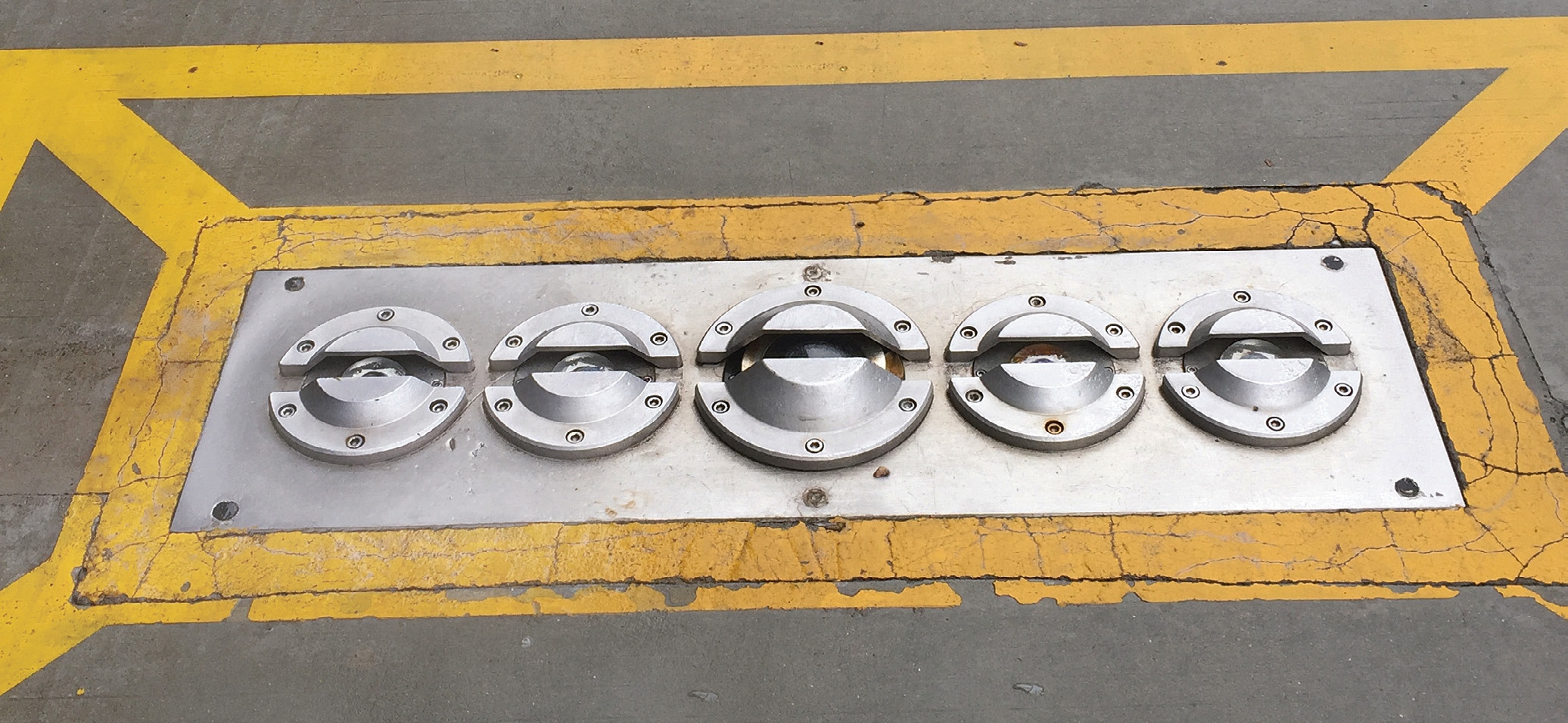

  • Installation directly into the road surface
  • No speed bump required — ensures passenger comfort during vehicle inspection
  • Four powerful LEDs provide high-quality illumination, even for large vehicles
  • Automatic pneumatic system prevents camera fogging and provides heating
  • Advanced line-scan camera captures all vehicle types at up to 27,000 frames per second
  • Intelligent automatic license plate recognition (ALPR) system
  • Detection and highlighting of suspicious areas under the vehicle chassis
  • Automatic storage of up to 100,000 images with automatic overwrite of oldest files (FIFO principle)
  • Fog-penetrating system with bright LEDs ensures clear, complete, and undistorted imaging
  • Image zoom, sorting, and filtering by time and scan results
  • Integration with PC, cameras, turnstiles (gates, barriers), and collision warning systems
  • Maximum vehicle speed:
    • Up to 30 km/h — with license plate recognition
    • Up to 70 km/h — without license plate recognition
  • Simultaneous scanning in two directions — approaching and departing
  • After image processing, archived scans can be retrieved and compared with current data
  • Operator can be located in a safe and comfortable remote location
Technical specifications

Permissible load

Up to 50 tons

Effective field of view

178°

Image resolution

12000 × 2096 pixels

Scanned object width

<4 m

Dust and water protection class

IP68

Weight of the scanning device

180 kg

Dimensions of the scanning device

1200 × 350 × 210 mm

Communication interface

1200 × 350 × 210 mm

Operating temperature range

From -40 °C to +60 °C

Power supply

AC 110-242 V, 50-60 Hz

LED illumination

200 W

Eurasian Economic Union

Declaration of Conformity TR CU 004/2011, TR CU 020/2011. Mobile vehicle underbody inspection system, model: DD-M, Stationary vehicle underbody inspection system, model: DD-S. Trademark "B2scan". Serial production

Certificate of Conformity of the Federal Agency for Technical Regulation and Metrology

Mobile vehicle underbody inspection system, model: B2scan DD-M, Stationary vehicle underbody inspection system, model: B2scan DD-S. Serial production. Valid from 06.02.2024 to 05.02.2027
