Mobile Under Vehicle Inspection Systems B2scan DD-M

Special features
• Portable design for easy transportation
• Assembly and installation of the mobile system in the
shortest possible time
• Innovative linear scanning camera for all vehicle types up to 27,000 frames per second
• Intelligent recognition system for vehicle registration numbers
• Identification of suspicious areas under the bottom of the vehicle

Mobile under vehical inspection system B2scan DD-M designed to inspect the bottom of a wide range of vehicles. It allows to quickly and accurately identify hidden and prohibited import and export items that can be hidden under the car. The under vehicle inspection system significantly reduces the time for conducting inspection procedures, saves human resources, and due to its mobility it can be used in different conditions.

  • Automatically save up to 100,000 images, and automatically delete outdated images
  • Anti-fog system with bright LEDs, providing clear and complete image without any distortion
  • Ability to scale, sort, select images by time and scan results
  • Connection to PC, camera, turnstile (gate or barrier), collision warning systems.
  • Permissible speed of a passing vehicle:
    < 30 km/h with automatic license plate recognition system
    < 70 km/h without automatic license plate recognition system
  • Simultaneous scanning in two directions – oncoming and in the direction of travel
  • After processing the received image, it is possible to open archive images and compare current and historical data
  • The operator can remotely control the DD-M system at a distance of up to 35 m
Download file

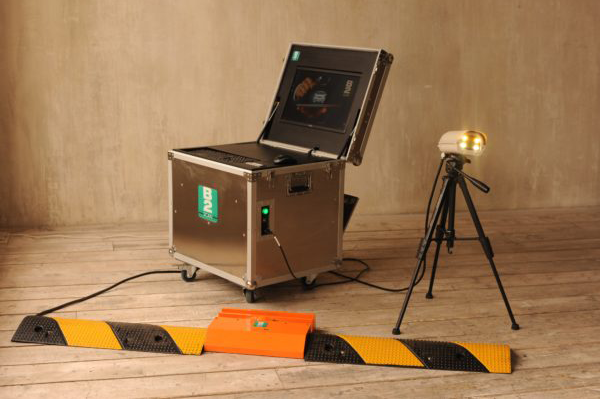

Vehicle bottom scanner


Rubber Brake

Camera for license

Technical parameters

Permissible load

up to 30 tons

Effective field of view


Image resolution

up to 12000×6144 pixels

Width of the scanned object

<4 m

IP protection class


Weight of scanning device

24 kg

Scanning device dimensions

450 х 400 х 88 mm

Communication interface


Operating temperature

от -25°C до +60°C

Storage temperature

от -40°С до +75°С

Power supply

AC 110-242 V, 50-60 Hz

Led lighting

100 W

The equipment has passed compulsory and voluntary certification applicable on the Russian Federation territory. Technical parameters and complete set of goods are subject to change without notice.
