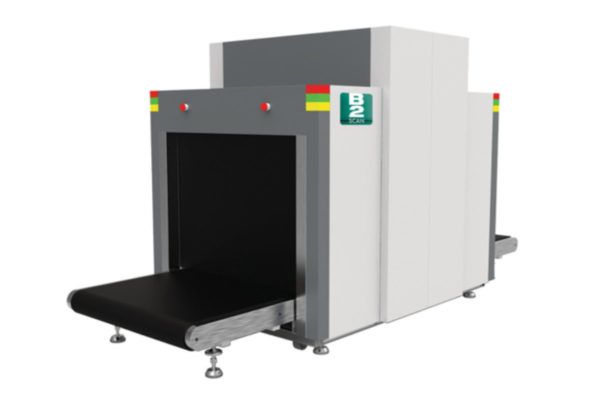

X-ray television system B2scan 10080T



X-ray television system B2scan 10080T is an advanced dual-energy X-ray inspection of hand luggage, baggage and cargo. Being equipping with two X-ray generators it provides a viewing of the checked object in two projections. With tunnel dimensions of 1010 mm×805 mm (W×H) it is ideal for inspection of hand luggage, luggage and cargo at airports, railway stations, customs posts, ports, etc.

Category:
Along with unmatched ergonomics, reliability and safety, X-ray inspection machine B2scan 10080T provide excellent image quality and improved material classification. X-ray inspection machine B2scan 10080T provides excellent image quality and improved material classification.

Automatic detection of explosives / drugs and alerts

Improved classification of materials: orange – organic, blue – metals, green – mixed materials.

Download file

Technological peculiarities:

  • High image quality with 40 AWG wire resolution and the penetrating power of steel is 34 mm.
  • The X-ray dose rate around the equipment is close to the natural background level, which corresponds to all applicable international health standards and occupational safety.
  • Automatic detection of explosives / drugs.
  • TIP (projection of the image of dangerous objects) is a very effective way to train operators and control their work.
  • Functional stepwise, continuous and local scaling provides convenient and quick magnification of the resulting image.
  • The resulting images can be saved in common formats (BMP, JPG, PNG) and transfer to an external USB drive.
  • The ergonomic design of the keyboard and user interface ensures effective and professional work of X-ray television introscope.
  • The modular design, combined with built-in diagnostics, ensures efficient maintenance of the equipment.
  • Data transmission over a local network using the TCP / IP family of protocols.
  • Information exchange with the system of collecting results of technical monitoring and control using a unified data transfer protocol and an XML-based metadata.

General specifications Operating characteristic


Tunnel dimensions





1010mm (W) ×805mm (H)

 Wire Resolution

40 AWG / 0,08mm
Conveyor speed

0,2 m/c

 Steel penetration

34 mm


Conveyor height



300 mm

 X-ray dose during the inspection

less  than 2 mSv
Maximum load capacity

200 kg with an even distribution





Monitor

 LCD, 21.5 inches, high resolution

1920×1080
Image processing system Health and safety






Image processing functions

 Color / BW image, organic / inorganic removal, change in absorption level, super-enhancement, negative image, high / low penetration, pseudocolor, etc.





Image processing functions

 Color / BW image, organic / inorganic removal, change in absorption level, super-enhancement, negative image, high / low penetration, pseudocolor, etc.


Material classification (by color)



Organic: orange, inorganic: blue, mixtures and light metals: green



Material classification (by color)



Organic: orange, inorganic: blue, mixtures and light metals: green




Scaling

 Selectable image scaling areas, magnification 1 ~ 64 times



Installation data
Image return Viewing previous images

Dimensions/weight

 3140 mm (L) × 1400 mm (W) ×

1650 mm(H) / 950 kg
Memory capacity Up to 100 000images Storage temperature -40°C~+60°C












Additional functions

 Date / time display, baggage counter, transaction log, user management, System-on/X-ray-on timers / Power-on self-test, built-in diagnostics tools, bi-directional scanning, image recognition training Operating temperature range

0°C~+40°C


Humidity

 5%~95% non-condensing


Power supplies

 AC power

220В(15%~+10%)

50 Hz / 60 Hz ± 3 Hz




Power consumption





1,0 kVA

The equipment has passed compulsory and voluntary certification applicable on the Russian Federation territory. Technical parameters and complete set of goods are subject to change without notice.
