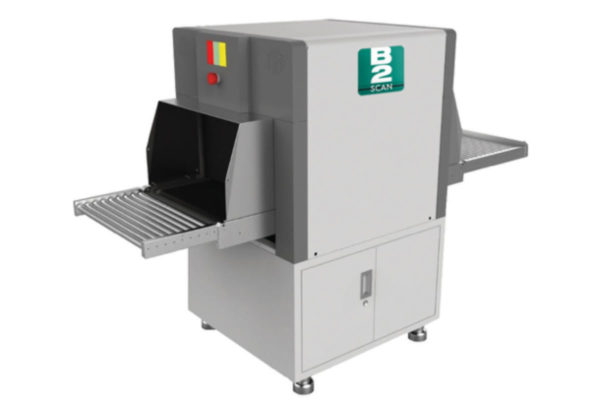

X-ray television system B2scan 5030T

X-ray television system B2scan 5030T is an advanced dual-energy X-ray inspection of hand luggage. With tunnel dimensions of 550 mm×330 mm (W×H) it is ideal for inspection of hand luggage in hotels, ships, museums, offices, etc.

Along with unmatched ergonomics, reliability and safety, B2scan5030T introscopes provide excellent image quality and improved material classification.

Introscope B2scan5030T has the function of automatic detection of explosives and drugs.

Automatic detection of explosives / drugs and alerts

Improved classification of materials: orange – organic, blue – metals, green – mixed materials.

Download file

Technological peculiarities:

  • High image quality with 40 AWG wire resolution and the penetrating power of steel is 14
  • The X-ray dose rate around the equipment is close to the natural background level, which corresponds to all applicable international health standardsand occupational safety.
  • Automatic detection of explosives / drugs.
  • TIP (projection of the image of dangerous objects) is a very effective way to train operators and control their work.
  • Functional stepwise, continuous and local scaling provides convenient and quick magnification of the resulting image.
  • The resulting images can be saved in common formats (BMP, JPG, PNG) and transfer to an external USB drive.
  • The ergonomic design of the keyboard and user interface ensures effective and professional work of X-ray television introscope.
  • The modular design, combined with built-in diagnostics, ensures efficient maintenance of the equipment.
  • Data transmission over a local network using the TCP / IP family of protocols.
  • Information exchange with the system of collecting results of technical monitoring and control using a unified data transfer protocol and an XML-based metadata.

B2scan 5030T

General specifications Operating characteristic

Tunnel dimensions



550 mm (W) ×330 mm (H)

Wire Resolution

40 AWG / 0,0787 mm

Conveyor speed

0,2 m/s

Steel penetration

14 mm


Conveyor height


160 mm / 800 mm(with a pedestal)

X-ray dose during the inspection

less  than 1 mSv

Maximum load capacity

120 kg with an even distribution




LCD, 21.5 inches, high resolution


Image processing system Health and safety



Image processing functions

Color / BW image, organic / inorganic removal, change in absorption level, super-enhancement, negative image, high / low penetration, pseudocolor, etc.



X-ray dose rate


Less than1 mSv/h (5 cm from the body) meets all applicable international standards


Material classification (by color)


Organic: orange, inorganic: blue, mixtures and light metals: green


Safety for photographic films

Guaranteed for highly sensitive film up to ASA/ISO 1600 (33 DIN)



Selectable image scaling areas, magnification 1 ~ 64 times


Installation data

Image return Viewing previous images


1260 mm (L) × 760 mm (W) ×

760 mm(H) / 160 kg

1800 mm (L)  × 760 mm (W)×1300 mm (H) / 210 kg

Memory capacity Up to 100 000images Storage temperature -40°C~+60°C






Additional functions

Date / time display, baggage counter, transaction log, user management, System-on/X-ray-on timers / Power-on self-test, built-in diagnostics tools, bi-directional scanning, image recognition training Operating temperature range




5%~95% non-condensing

Power supplies

AC power


50 Hz / 60 Hz ± 3 Hz



Power consumption



0,6 kVA

The equipment has passed compulsory and voluntary certification applicable on the Russian Federation territory. Technical parameters and complete set of goods are subject to change without notice.
