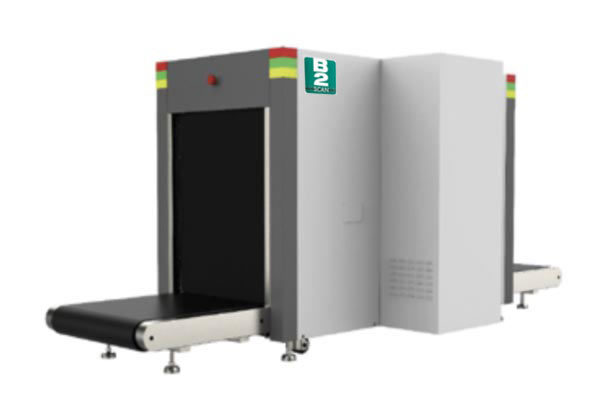

X-ray television system B2scan 6080S


X-ray television system B2scan 6080S is an advanced dual-energy X-ray inspection of hand luggage. With tunnel dimensions of 615 mm × 815 mm (W × H) it is ideal for inspection of hand luggage in hotels, ships, museums, offices, etc.

Along with unmatched ergonomics, reliability and safety, B2scan 6080S introscopes provide excellent image quality and improved material classification. Introscope B2scan 6080S has the function of automatic detection of explosives and drugs.

Automatic detection of explosives / drugs and alerts

Improved classification of materials: orange – organic, blue – metals, green – mixed materials.

Download file

Technological peculiarities:

  • High image quality with 40 AWG wire resolutionand the penetrating power of steel 34 mm.
  • The X-ray dose rate around the equipment is close to the natural background level, which corresponds to all applicable international health standards and occupational safety.
  • Automatic detection of explosives /drugs.
  • TIP(projection of the image of dangerous objects) is a very effective way to train operators and control their work.
  • Functional stepwise, continuousand local scaling provides convenient and quick magnification of the resulting image.
  • The resulting images can be saved in common formats (BMP, JPG, PNG) and transfer to an external USB drive.
  • The ergonomic design of the keyboard and user interface ensures effective and professional work of X-ray television introscope.
  • The modular design, combined with built-in diagnostics, ensures efficient maintenance of the equipment.
  • Data transmission over a local network using the TCP / IP family of protocols.
  • Information exchange with the system of collecting results of technical monitoring and controlusing a unified data transfer protocol andan XML-based metadata.

B2scan 6080S

General specifications Operating characteristic

Tunnel dimensions



615 mm (W) ×815 mm (H)

Wire Resolution

40 AWG / 0,08 mm

Conveyor speed

0,2 m/s

Steel penetration

34 mm


Conveyor height



X-ray dose during the inspection

less than 2 mSv

Maximum load capacity 200 kg with an even distribution




LCD, 21.5 inches, high resolution


Anode voltage

160 kW

Image processing system Health and safety



Image processing functions

Color / BW image, organic / inorganic removal, change in absorption level, super-enhancement, negative image, high / low penetration, pseudocolor, etc.



X-ray dose rate


Less than 1 mSv /h (5 cm from the body)

meets all applicable international standards


Material classification (by color)


Organic: orange, inorganic: blue, mixtures and light metals: green


Safety for photographic films

Guaranteed for highly sensitive film up to ASA/ISO 1600 (33DIN)



Selectable image scaling areas, magnification 1 ~ 64 times


installation data

Image return Viewing previous images


3000 mm (L) × 1200 mm(W) ×

1280 mm (H) / 750 kg

Memory capacity Up to 100 000images Storage temperature -40°C~+60°C






Additional functions

Date / time display, baggage counter, transaction log, user management, System-on/X-ray-on timers / Power-on self-test, built-in diagnostics tools, bi-directional scanning, image recognition training Operating temperature range




5%~95% non-condensing

Power supplies

AC power


50 Hz / 60 Hz ± 3 Hz



Power consumption



0.5 kVA

The equipment has passed compulsory and voluntary certification applicable on the Russian Federation territory. Technical parameters and complete set of goods are subject to change without notice.
