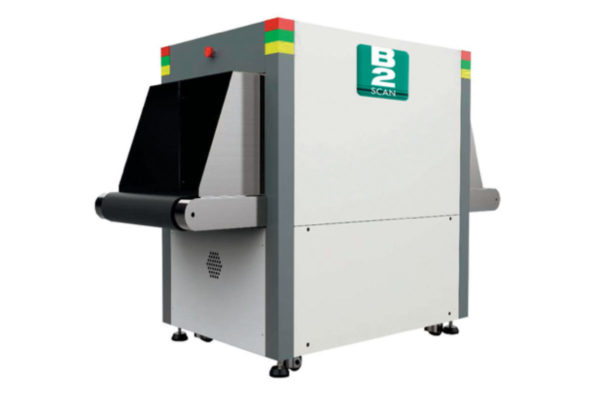

X-ray television system B2scan 7555B



X-ray television system B2scan 7555B is an advanced dual-energy X-ray inspection of hand luggage and baggage. With tunnel dimensions of 755 mm×555 mm (W× H) it is ideal for inspection of hand luggage and baggage at airports, railway stations, customs posts, ports, etc.

Along with unmatched ergonomics, reliability and safety, B2scan 7555B introscopes provide excellent image quality and improved material classification. Introscope B2scan 7555B has the function of automatic detection of explosives and drugs.

Automatic detection of explosives / drugs and alerts
Improved classification of materials: orange – organic, blue – metals, green – mixed materials.

Download file

Technological peculiarities:

  • High image quality with 40 AWG wire resolution and the penetrating power of steel is 34 mm.
  • The X-ray dose rate around the equipment is close to the natural background level, which corresponds to all applicable international health standards and occupational safety.
  • Automatic detection of explosives / drugs.
  • TIP (projection of the image of dangerous objects) is a very effective way to train operators and control their work.
  • Functional stepwise, continuous and local scaling provides convenient and quick magnification of the resulting image.
  • The resulting images can be saved in common formats (BMP, JPG, PNG) and transfer to an external USB drive.
  • The ergonomic design of the keyboard and user interface ensures effective and professional work of X-ray television introscope .
  • The modular design, combined with built-in diagnostics, ensures efficient maintenance of the equipment.
  • Data transmission over a local network using the TCP / IP family of protocols.
  • Information exchange with the system of collecting results of technical monitoring and control using a unified data transfer protocol and an XML-based metadata.

General specifications Operating characteristic


Tunnel dimensions





755 mm (W) ×555 mm (H)

Wire Resolution

40 AWG / 0,08mm

Conveyor speed

0,2 m/s

Steel penetration

34 mm



Conveyor height



750 mm

X-ray dose during the inspection

less  than 1,5 mSv

Maximum load capacity

160 kg with an even distribution





Monitor

LCD, 21.5 inches, high resolution 1920×1080
Image processing system Health and safety






Image processing functions

Color / BW image, organic / inorganic removal, change in absorption level, super-enhancement, negative image, high / low penetration, pseudocolor, etc.





X-ray dose rate



Less than1 mSv /h (5 cm from the body) meets all applicable international standards



Material classification (by color)



Organic: orange, inorganic: blue, mixtures and light metals: green



Safety for photographic films

Guaranteed for highly sensitive film up to ASA/ISO 1600 (33 DIN)




Scaling

Selectable image scaling areas, magnification 1 ~ 64 times



Installation data

Image return Viewing previous images

Dimensions/weight

2340 mm (L) × 1005mm (W) ×

1500 mm (H) / 575 kg

Memory capacity Up to 100 000images Storage temperature -40°C~+60°C












Additional functions

Date / time display, baggage counter, transaction log, user management, System-on/X-ray-on timers / Power-on self-test, built-in diagnostics tools, bi-directional scanning, image recognition training Operating temperature range

0°C~+40°C



Humidity

5%~95% non-condensing


Power supplies

AC power

220В(15%~+10%)

50 Hz / 60 Hz ± 3 Hz





Power consumption





0,8 kVA

The equipment has passed compulsory and voluntary certification applicable on the Russian Federation territory. Technical parameters and complete set of goods are subject to change without notice.
