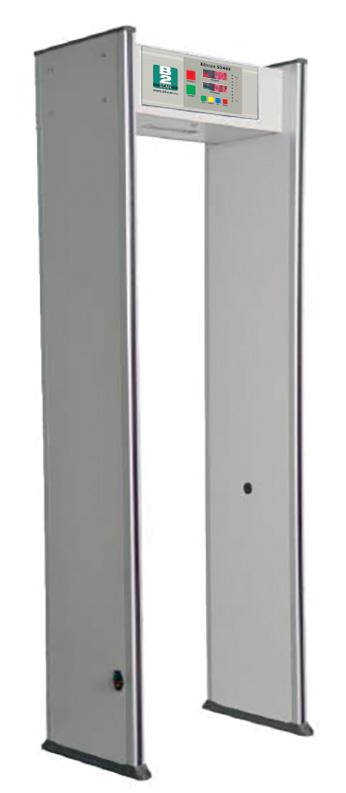

Arched metal detector B2scan SD1000 - B2SCAN — X-ray television installations

Technological features

Specifications

Permitting documentation

LED indication of detected objects on the control unit display and side panels
Adjustable detection zones: 6, 12, or 18 zones
Audio and visual alarm with adjustable signal duration, volume, and melody
Ensures high selectivity and operates in detection modes for mixed, ferrous, and non-ferrous metals
Automatic compensation of external interference
Protection against false alarms
Two-level protection against unauthorized access: software password protection and lockable control unit housing
72 preset selective detection programs, with the ability to create custom programs
Passage width: 760 mm, 820 mm, or 1000 mm
Minimum distance between detectors: 0.3 m (without synchronization cable)
Cable entry for power and Ethernet on the left, right, and top sides of the detector
“Stop/Go” indicators on the front panel
Dry contact outputs for connecting external devices (turnstiles, gates, cameras, etc.)
Integrated passage and alarm counters
“Anti-passback” mode
Integrated uninterruptible power supply for autonomous operation — optional
Computer control module: connection to PC via USB, Ethernet, or Bluetooth
Mobile app for controlling the metal detector from a smartphone or tablet
Data transmission over a local network using TCP/IP protocols
Integration with technical monitoring and control systems via standardized data protocols and XML-based metadata format

General specifications

Net weight

67 kg

External dimensions

2220 mm (H) x 880 mm (W) x 580 mm (D)

Internal dimensions

2000 mm (H) x 760 mm (W) x 500 mm (D)

Operating temperature

From -25 °C to +55 °C

Operational characteristics

Network voltage

AC 100 V – 242 V, 50/60 Hz

Signal frequency

7000-8999 Hz (adjustable)

Power consumption

<20 W

Voluntary certification in the field of fire safety

Certificate of Conformity Stationary arched metal detector, models: B2scan SD1000, B2scan SD2000, B2scan SD3000, B2scan SD4000.

Mandatory certification of technical means of ensuring transport security

Certificate of conformity of technical means of ensuring transport security to their functional properties, approved by the Decree of the Government of the Russian Federation of September 26, 2016 No. 969 Stationary arched metal detector B2scan SD1000. Serial production

Eurasian Economic Union

Declaration of conformity TR CU 004/2011, TR CU 020/2011. X-ray television inspection systems, models: B2scan 5030T, B2scan 6080S, B2scan 100100T, B2scan 100100DB, B2scan 100120D, B2scan 150180S, B2scan 150180D, trademark "B2scan". Serial production

Certificate of Conformity of the Federal Security Service

Stationary arch metal detector B2scan SD1000

Certificate of Conformity of the Federal Agency for Technical Regulation and Metrology

Stationary arch metal detector, models: B2scan SD1000, B2scan SD2000, B2scan SD 3000, B2scan SD4000. Serial production
